Dimensions of a Silva 70p?

Places, technique, kayaks, safety, the sea...
Post Reply
Thompo
Posts: 87
Joined: Tue May 10, 2011 2:08 pm
Location: Belfast Northern Ireland
Contact:

Dimensions of a Silva 70p?

Post by Thompo »

Hi there

Ive been bought a Silva 70UNE compass as gift and im going to make a bracket to fit it into the existing compass recess.

I am looking for the 70p bolt spacing if possible, or however much detail you would like to go into, LxW of the "square bit", hole pitch diagonally and horizontal/vertical.

My thought is to drill the boat for a 70p and fit my bracket/70une assembly to it, meaning that if i ever sell the boat a 70p can fitted using the existing holes.

Tried google but couldnt find anything :(

thanks Neil

Ken_T
Posts: 273
Joined: Fri Jan 15, 2010 11:26 am
Been thanked: 3 times

Re: Dimensions of a Silva 70p?

Post by Ken_T »

Hi Neil,
I attached the supplied bracket to the front hatch cover, which I have found to be very satifactory. It saves drilling the boat & is very quick to do. Also you can use your compass on another boat if the hatch covers are compatable.
Ken

User avatar
MikeB
Posts: 8093
Joined: Tue Apr 29, 2003 9:44 pm
Location: Scotland
Has thanked: 11 times
Been thanked: 18 times

Re: Dimensions of a Silva 70p?

Post by MikeB »


9.4 cms square.
The centres of the screws are 1 cm in from sides.
As a cross-check, the centres are 10.4 on the diagonal.

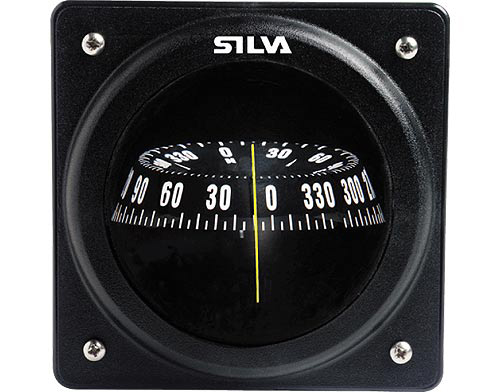

I guess if you could accurately scale the picture you could use it as a template / double check those measurements. Another thought would be to ask a kind retailer to photocopy the fitting template??

Hope this helps. Mike.

Thompo
Posts: 87
Joined: Tue May 10, 2011 2:08 pm
Location: Belfast Northern Ireland
Contact:

Re: Dimensions of a Silva 70p?

Post by Thompo »

Hi Mike,

Thats great thanks very much :D, Ive CAD here so ill draw it out and have access to a waterjet cutter to make it :D

I was tempted to mount it to the Fwd hatch cover but i was worried it might move, is the aligment with the centerline on the boat important?
Last edited by Thompo on Thu Feb 23, 2012 5:31 pm, edited 1 time in total.

jamesl2play
Posts: 522
Joined: Tue Sep 18, 2007 8:55 pm
Location: Bridgend
Been thanked: 7 times

Re: Dimensions of a Silva 70p?

Post by jamesl2play »

I have a template you can have. Let me know if you would like me to post it. Or I could scan it and email it.

Thompo
Posts: 87
Joined: Tue May 10, 2011 2:08 pm
Location: Belfast Northern Ireland
Contact:

Re: Dimensions of a Silva 70p?

Post by Thompo »

Thanks for the kind offer james but i should be fine with the dimensions.

wonder if scanning it and posting it as picture would be breach of copyright?

User avatar
MikeB
Posts: 8093
Joined: Tue Apr 29, 2003 9:44 pm
Location: Scotland
Has thanked: 11 times
Been thanked: 18 times

Re: Dimensions of a Silva 70p?

Post by MikeB »

Thompo wrote:Hi Mike,

Thats great thanks very much :D, Ive CAD here so ill draw it out and have access to a waterjet cutter to make it :D

I was tempted to mount it to the Fwd hatch cover but I was worried it might move, is the aligment with the centerline on the boat important?
In truth, the forward hatch cover would be fine - I've done something similar in the past. In terms of alignment, yes getting it lined up with the centreline is a good idea of course, but the reality is that if the cover is oval, it's going to line up easily anyway. Even it its a round cover, there will be some form of mark you can use. If not, make some.

You're not going to get pinpoint accuracy anyway at sea, and given the compass is marked out in 5 degree chunks, you've got a big margin for error in comparison to a hand-held compass used on land.

Hope this helps - Mike.

Ps : I'm in no way envious of your being able to access a waterjet!!!

User avatar
Mikebelluk
Posts: 562
Joined: Mon Jan 14, 2008 9:28 pm
Location: Merseyside
Been thanked: 1 time

Re: Dimensions of a Silva 70p?

Post by Mikebelluk »

Anyone got the size and depth of the dimple the Silva fits into?
I'm fabricating a new hatch surround and its not too late to incorporate one!

Thompo
Posts: 87
Joined: Tue May 10, 2011 2:08 pm
Location: Belfast Northern Ireland
Contact:

Re: Dimensions of a Silva 70p?

Post by Thompo »

Measured the recess on my Aquanaut

Actually looks like a 70p would be a very snug fit!

User avatar
Mikebelluk
Posts: 562
Joined: Mon Jan 14, 2008 9:28 pm
Location: Merseyside
Been thanked: 1 time

Re: Dimensions of a Silva 70p?

Post by Mikebelluk »

Thanks for going to the trouble to do that Thompo.
Very helpful information.

Thompo
Posts: 87
Joined: Tue May 10, 2011 2:08 pm
Location: Belfast Northern Ireland
Contact:

Re: Dimensions of a Silva 70p?

Post by Thompo »

Mikebelluk wrote:Thanks for going to the trouble to do that Thompo.
Very helpful information.
No trouble at all, was drawing out my bracket anyway.

Ill post a drill template next time i get near the home computer.
